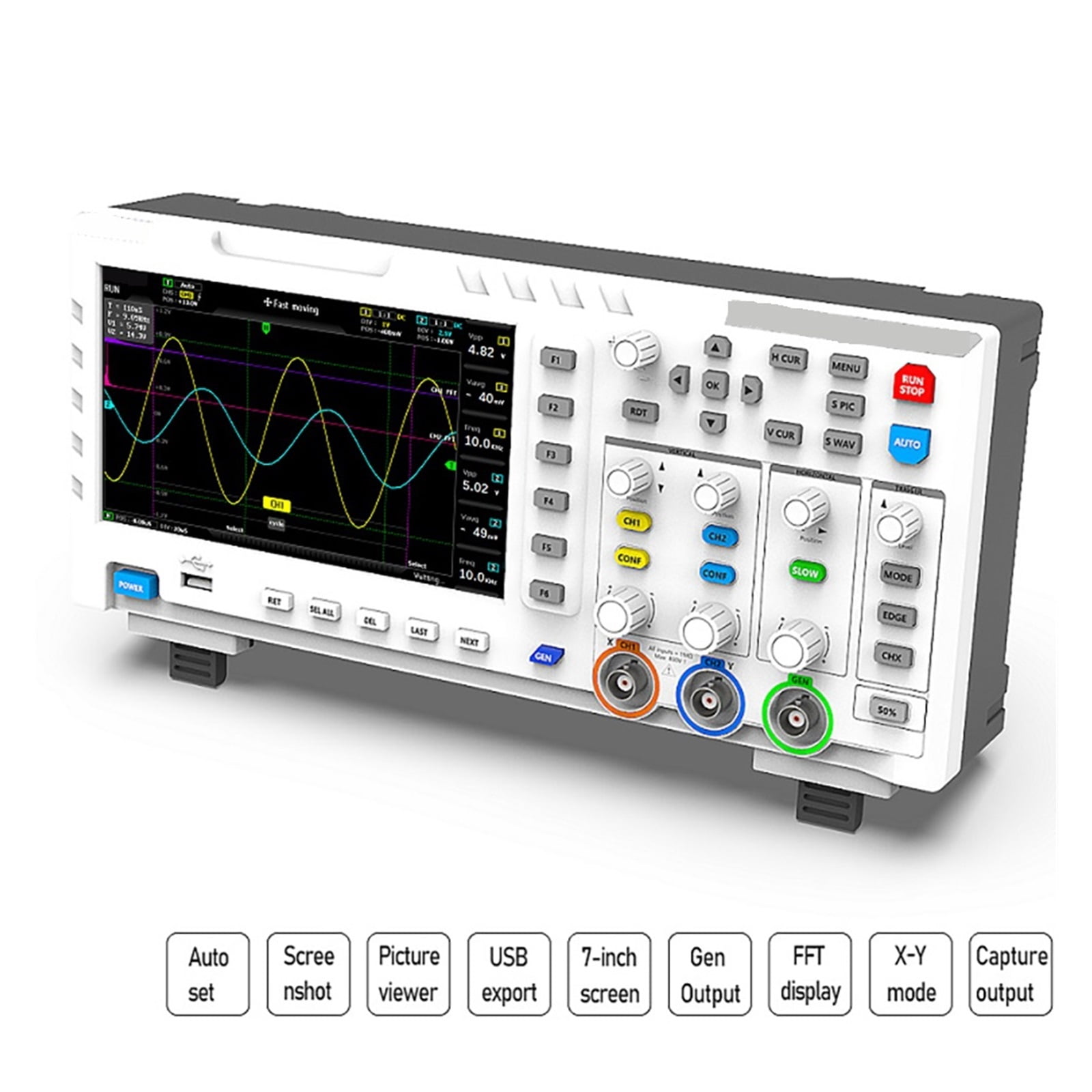

USB Digital Oscilloscope Table 1014D 2 In 1 Dual Channel Input Signal Generator 1GSa/s Sampling Rate 100MHz* 2 Ana-log Bandwidth ,Professional Designed

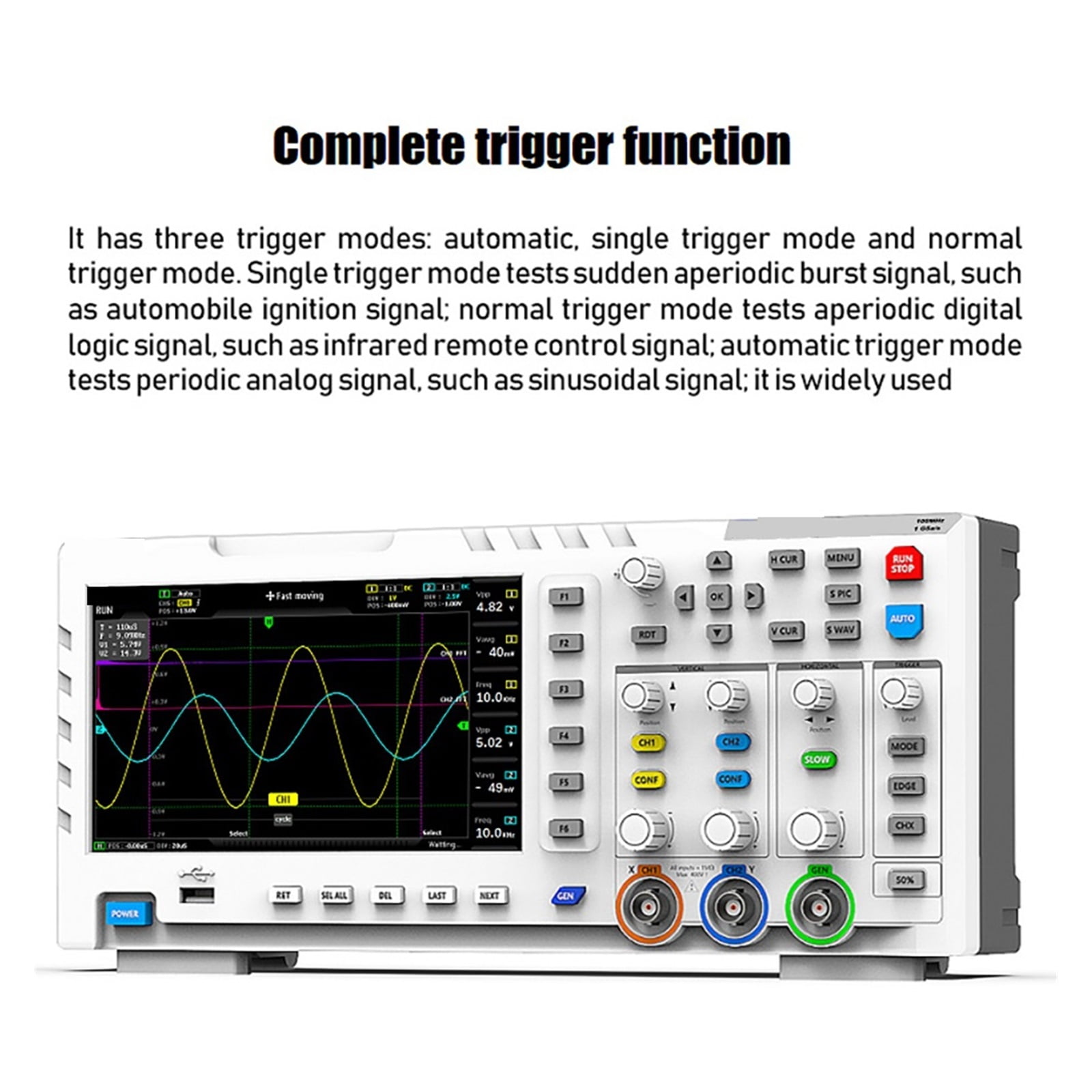

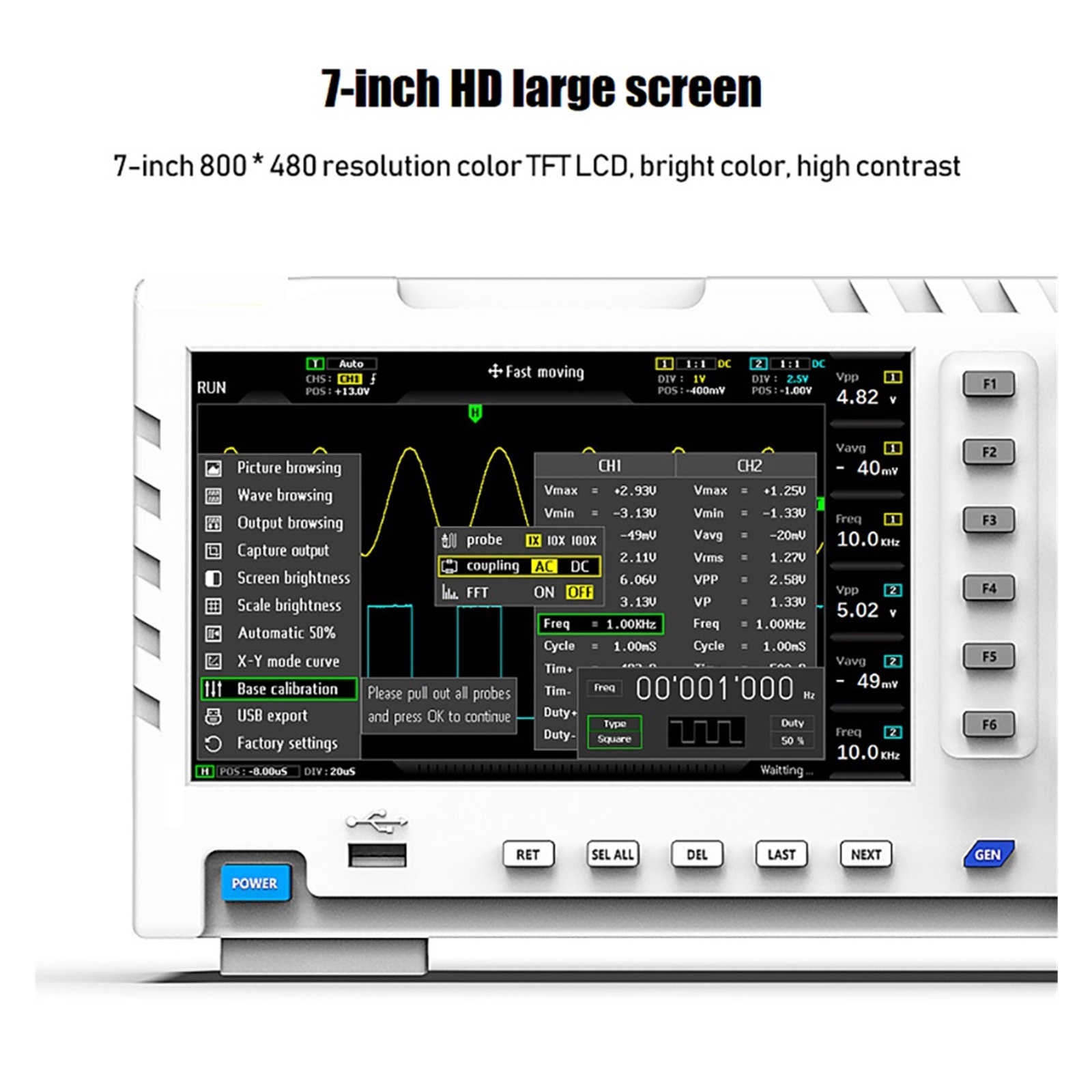

<p>USB Digital Oscilloscope</p><p>Key Features:</p><p>1:Built in signal generator, support 12 kinds of function signal</p><p>2:Industry's original Capture output signal function,can store up to 1000 capture signals</p><p>3:Targeted high intelligent decoding algorithm, the encoder life is infinite</p><p>4:Intelligent anti-burn,1X Can withstand up to withstand voltage</p><p>5:100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz,10X = 100MHz)</p><p>6:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast</p><p>8:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period</p><p>9:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage</p><p>10:Complete triggering function (single, normal, automatic)</p><p>11:At any time, the waveform display (pause function) is frozen</p><p></p><p>Specifications:</p><p>1:Analog band width: 100MHz * 2</p><p>2:Number of channels:2 channels</p><p>3:Maximum real time sampling rate: 1GSa/s</p><p>5:Horizontal time base range: 50S/div ~ 10nS/div</p><p>7:Storage depth: 240Kbit</p><p>8:Input resistance: 1M</p><p>9:ADC precision: 8bits</p><p>10:Coupling mode: AC/DC</p><p>11:Trigger mode: Single, Normal, Auto</p><p>12:Trigger edge: Rising edge/Falling edge</p><p>14:Display: 7 inch - 800*480</p><p>16:Extension ports:USB picture export</p><p></p><p>Usb digital oscilloscope table, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• FFT display function, can analyze the spectral characteristics of the signal
• Memory compression technology, waveform refresh screen does not flicker
• Screen brightness adjustment
• Background grid brightness adjustment
• Ultra thin, easy to carry
