Top Street Performance Velocity High-Flow Fuel Injectors for GM Chevy LS, LS2 LS6 and 5.0L Coyote 160 lbs/hr

Configured for GM LS1/LS2/LS6 applications, this fuel injector set supports precise fuel metering, consistent cylinder-to-cylinder delivery, and EFI calibration flexibility.Injector Flow & Fuel MeteringFlow rate is listed at 160 lbs./hr.. Impedance is listed as High. Driver type is listed as 12V Saturated Circuit. These details should be matched to the ECU, fuel pressure, and engine fuel demand.Plug / Terminal CompatibilityInjector plug style is USCAR. Terminal details include Male gender, Blade terminal type, and 2 terminals. Connector compatibility should be verified before installation or adapter selection.Injector Body & O-Ring FitSeat-to-seat height is 2.078 in.. Maximum outside diameter is 0.551 in.. O-ring details include manifold O-ring 0.551 in. and rail O-ring 0.551 in.. Confirm fuel rail fit, intake fit, and injector depth before installation.Calibration & System MatchingCommon use cases include Chevrolet Camaro, Pontiac Firebird, Chevrolet Corvette. Injector flow rate, plug style, impedance, and calibration must be matched to the EFI system before startup.COMPATIBLE WITH:FITS THE FOLLOWING TSP VELOCITY COMBINATIONS: 81001 LS1/LS2/LS6 Intake Manifold with 81008 Fuel Rails 81002 LS1/LS2/LS6 Intake Manifold with 81008 Fuel Rails 84050 Ford 5.0L Coyote Intake Manifold with 84051 Fuel RailsNOTE: Fitment with LS1 requires conversion from EV1M to EV6F connectors (adapters included).COMMON VEHICLE APPLICATIONS:Chevrolet SilveradoGMC SierraChevrolet CamaroChevrolet TahoeSPECIFICATIONS: Driver Type: 12V Saturated Circuit Flow Rate: 160 lbs./hr. Fuel Injection Type: Multi-port Fuel Rail O-ring Outer Diameter: 0.551 in. Fuel Type: Gas Impedance: High Injector Plug Style: USCAR Manifold O-ring Outer Diameter: 0.551 in. Maxim

• Compatible with LS1, LS2, LS6, and Coyote TSP intake manifolds

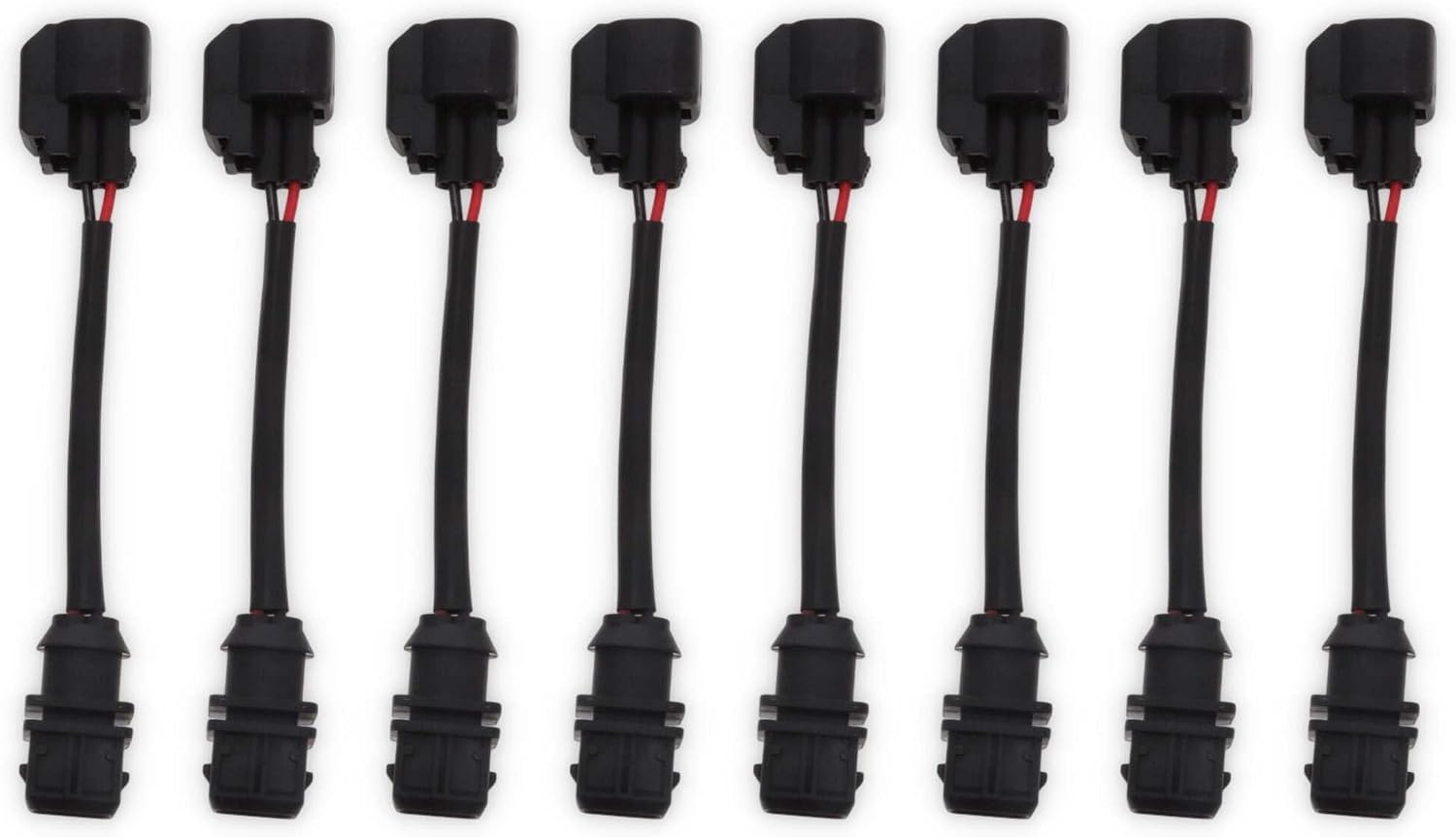

• Includes EV1M to EV6F adapters
• Available with flow rates of 36 to 160 lbs/hr
