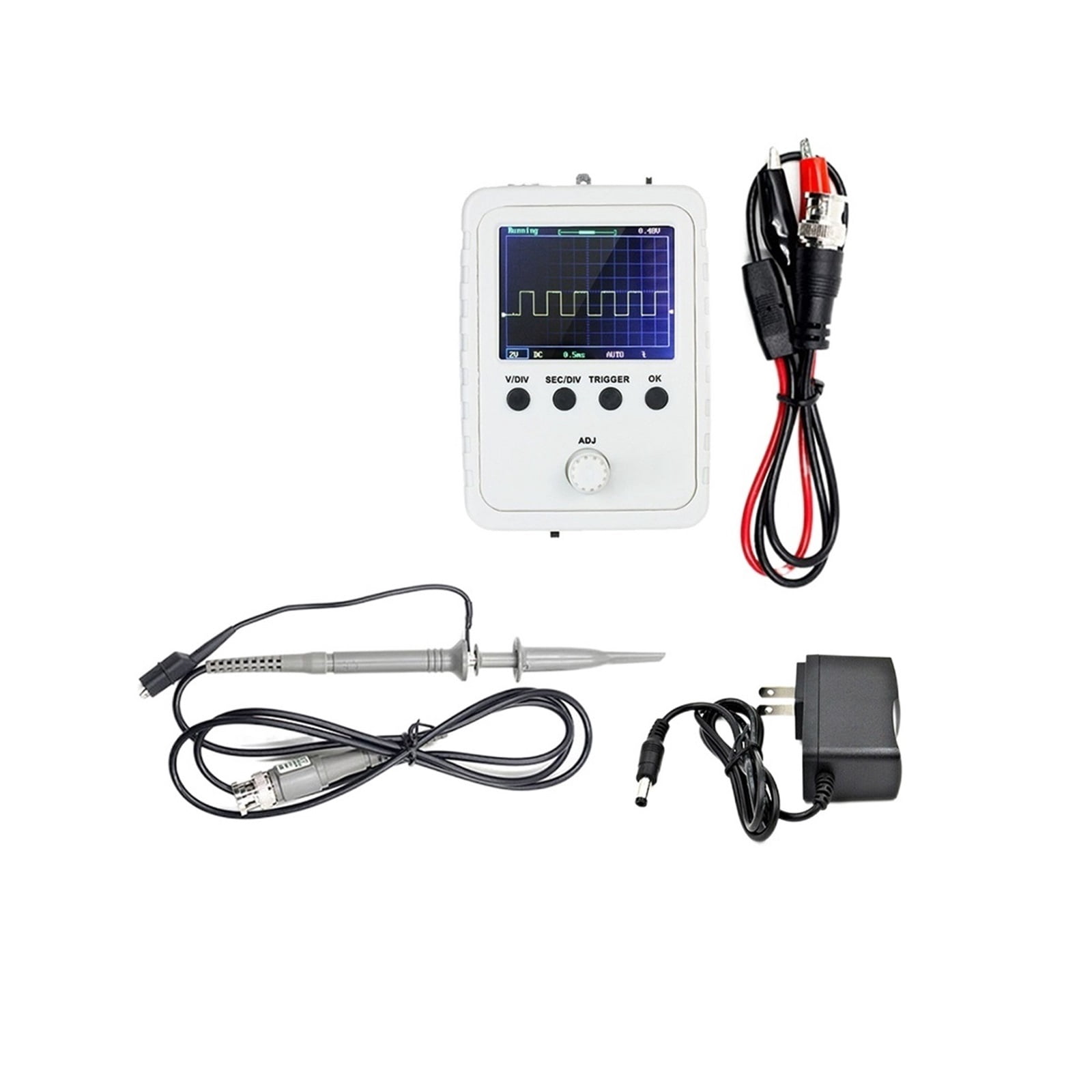

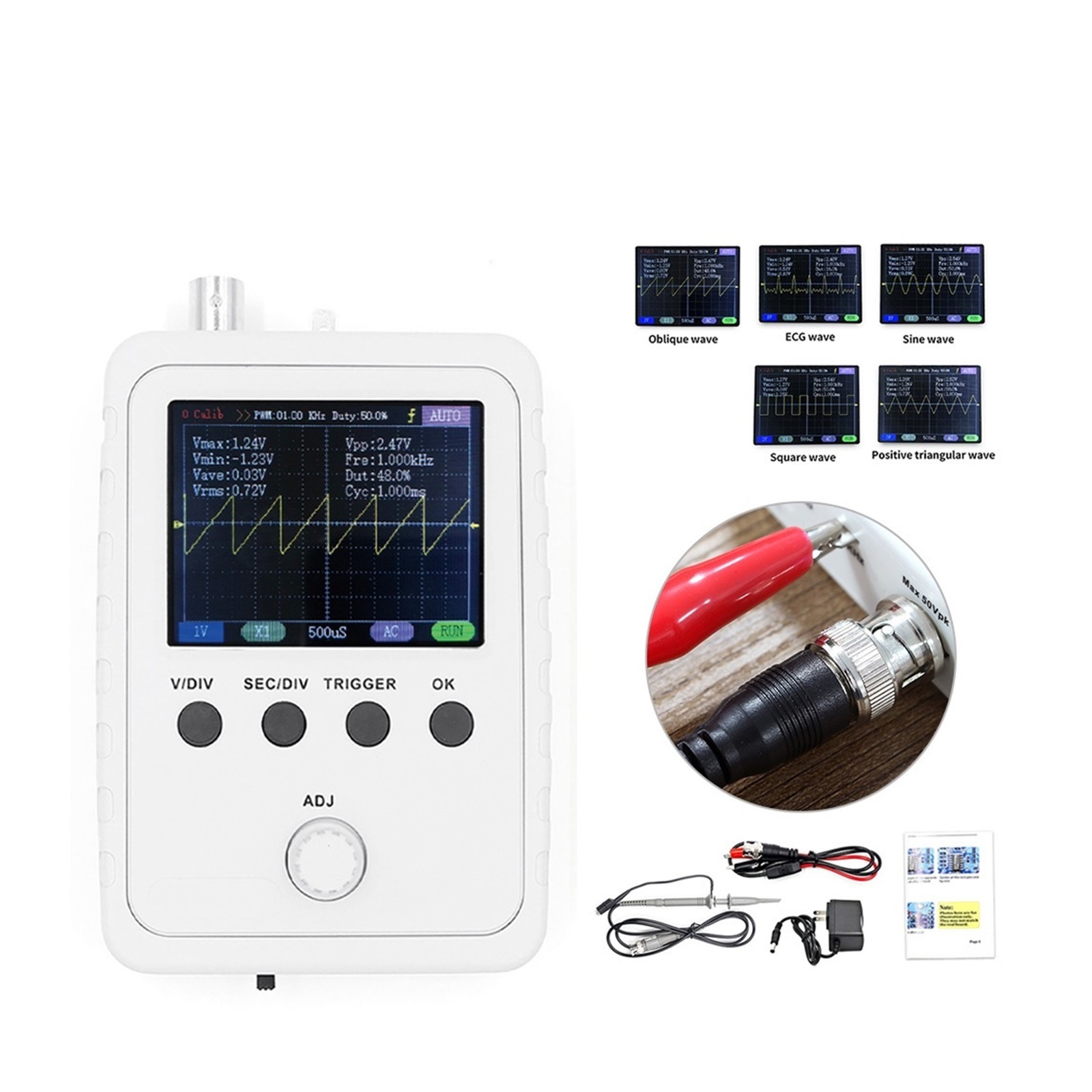

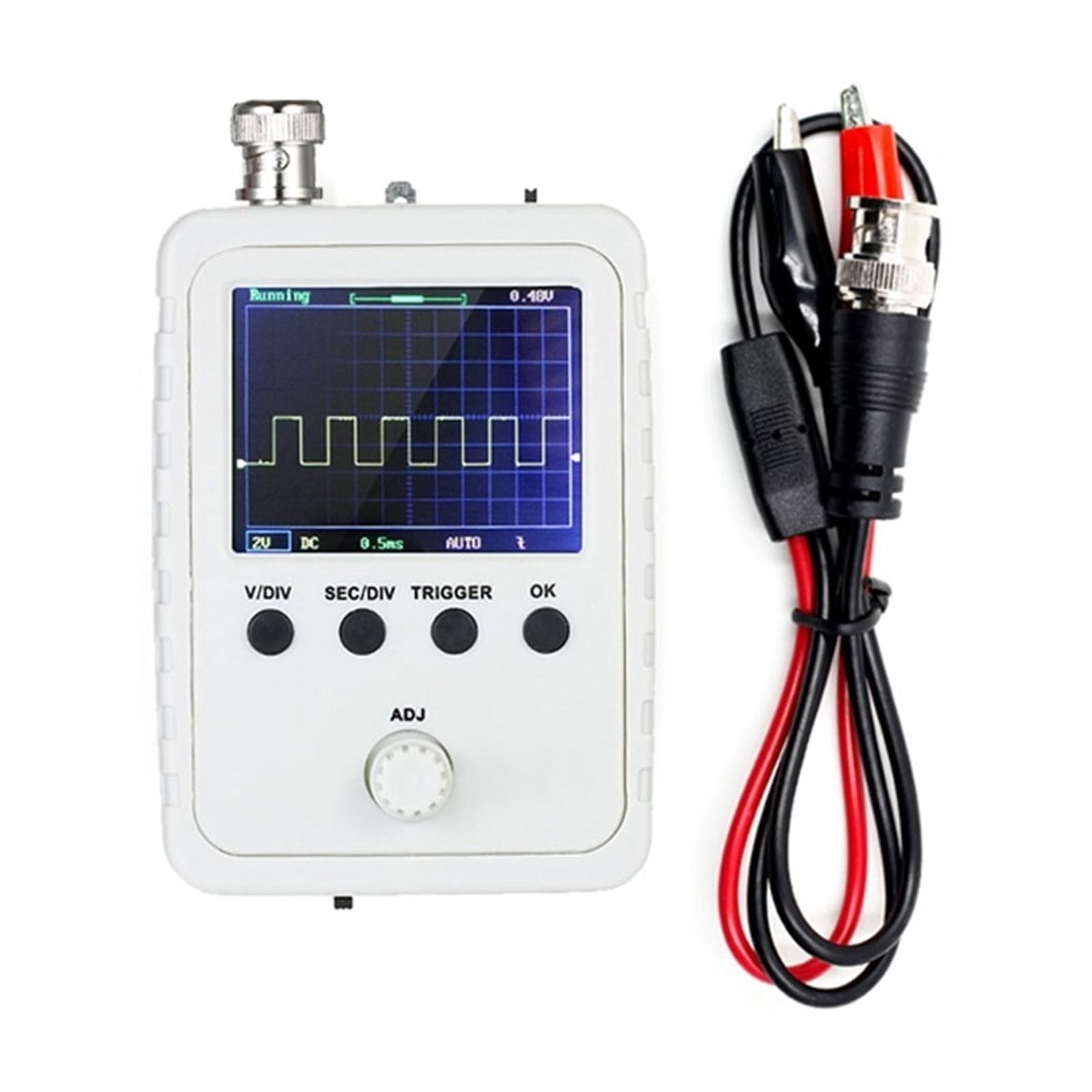

Portable Oscilloscope DSO150 Oscilloscope Digital Multimeter 200kHz Bandwidth 1 Channel 2.4" Display 1MSa/s Support 80KHz ,Professional Designed

<p>Features:</p><p>Vertical displacement is adjustable and with instructions</p><p>Waveforms before observable triggers</p><p>Freeze waveform display at any time</p><p>Test signal source with 1KHz /3.3V square wave</p><p>Save/tune out the waveform, the waveform does not disappear after shutdown.</p><p></p><p>Description:</p><p>*1. Display: 2.4-inch color TFT LCD(320 x 240 resolution)</p><p>*2. Maximum Real Time Sampling Rate: 1Msps</p><p>*3. Precision: 12Bit</p><p>*4. Sampling Buffer Depth: 1024 bytes</p><p>*5. Number of Channel: 1</p><p>*6. Analog Band Width: 0~200KHz</p><p>*7. Vertical Sensitivity: 5mV/Div~20V/Div (progressive by 1-2-5)</p><p>*8. Trigger Position: 1/2 of buffer size fixed</p><p>*9. Sensitivity Error: &lt; 5%</p><p>*10. Input Impedance: 1M </p><p>*11. Power Supply: 9V DC</p><p>*12. Supply Current: 120mA</p><p>*14. Coupling Methods: DC/AC/GND</p><p>*15. Horizontal Time Base Range: 10 s/Div~50s/Div (progressive by 1-2-5)</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• *1. Has Automatic/Conventional/Single trigger mode, convenient to capture the instantaneous waveform
• *2. Digitally displays waveform parameters, such as frequency, cycle, pulse width, duty cycle, maximum, minimum, average, peak value and effective value
• *3. Triggered by a rise or drop edge
• *4. The trigger level position is adjustable and with instructions
• *5.Waveforms before observable triggers
